Paint from The Past, Performance from the Future

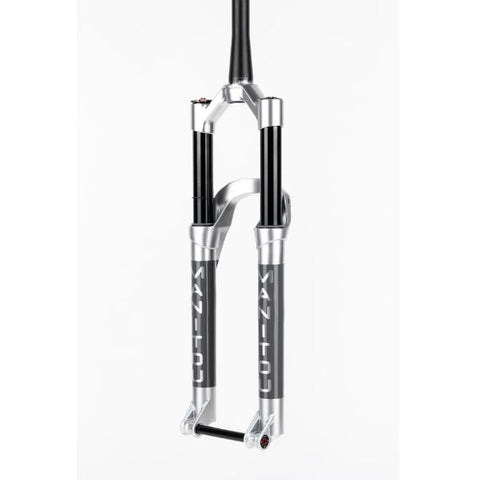

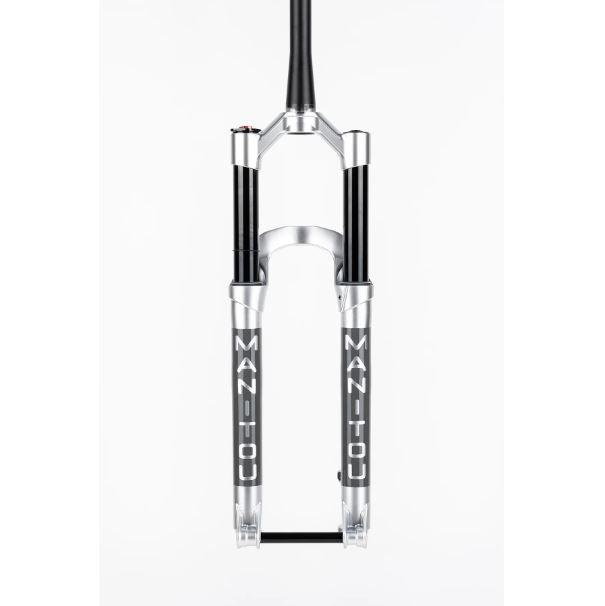

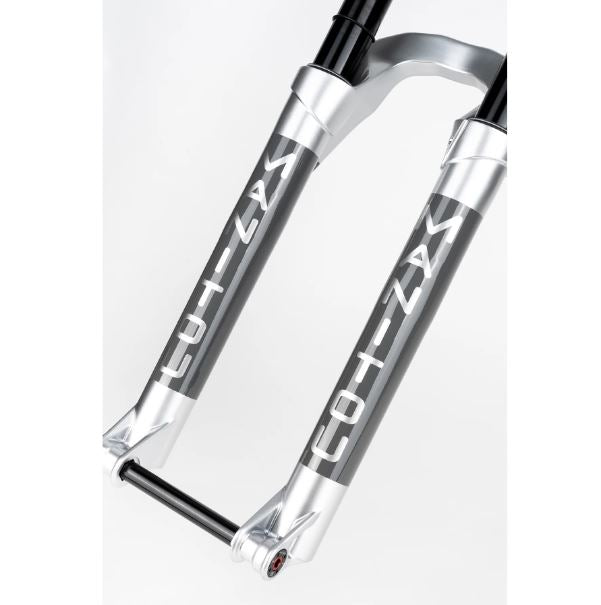

The original Manitou fork was versatile by necessity when, regardless of your discipline, there was one choice for your suspension needs. The new Manitou Mattoc Pro Limited Edition borrows its iconic look from 1992 yet takes all the technology from 2024 and packs it in a 34mm stanchion 29” wheel package that spans multiple riding disciplines.
Out of the box, the Mattoc Pro LE is configured to 140mm travel. With the travel spacers included in the box, along with the easy-to-follow service instructions found on Manitoumtb.com, the travel can be internally adjusted from 110-150mm.
Specification:
• Wheel Size: 29"
• Weight: 1750g
• Offset: 44OS
• Ride Height: 140mm = 552 a2c
• Spring: Dorado Air with Infinite Rate Tune (IRT)
• Compression Damping: Sealed Cartridge TPC+ with Hydraulic Bottom Out (HBO)
• Rebound Damping: Sealed Damper TPC
• Adjustments: Air, IRT, Rebound, HS, and LS Compression
• Steerer: 1.5" Tapered
• Crown: Forged Aluminum, Hollow Bore
• Leg Diameter: 34mm
• Leg Material: 7000 Series Butted Wall Aluminum
• Brake: Post Mount 160mm

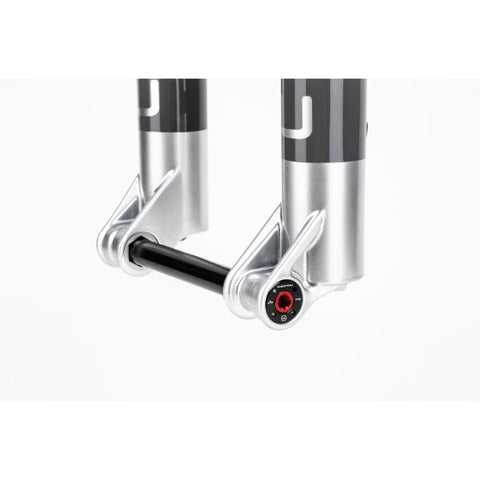

• Axle: 15mm x 110mm Hexlock
• Max Tire Size: 67mm / 2.6in
• E-Bike Compatible: Yes
Need your fork serviced? - We service in house! - Get in touch to book a slot.
